(Grid) Lines Drawn on Top of Other Layers

Source: R/geom-gridline.R
geom_gridline.Rd

geom_gridline() draws horizontal and vertical grid lines as a regular ggplot2 layer, so they appear above bar charts or any other geom in your plot.

The line positions are read directly from the trained scale (via panel_params), and the line properties are read from the theme; so geom_gridline() always matches the grid line positions and properties by default — but you are free to override every property, of course.

This was inspired by Observable Plot's Grid mark: https://observablehq.com/plot/marks/grid#grid-mark.

Usage

geom_gridline(
  mapping = NULL,
  data = NULL,
  grids = "y",
  lines = "major",
  colour = NULL,
  linewidth = NULL,
  linetype = NULL,
  lineend = NULL,
  alpha = NA,
  na.rm = FALSE,
  show.legend = FALSE,
  inherit.aes = FALSE,
  ...
)

Arguments

mapping, data

Present for ggplot2 layer-signature compatibility but unused: geom_gridline() reads break positions from the panel scales rather than from a layer mapping or data. Passing a non-default value for either emits a warning.

grids

Character vector specifying which "grid" lines to draw: "x", "y" (default), or c("x", "y") for both.

lines

Character vector specifying which line type(s) to draw: "major" (default), "minor", or c("major", "minor") for both.

colour, linewidth, linetype, lineend

Line aesthetics. Default NULL inherits each property by walking ggplot2's documented theme chain: panel.grid.major.x (or .y) → panel.grid.major → panel.grid → line. Pass explicit values to override individual properties.

alpha

Opacity in [0, 1]. Default NA (fully opaque).

na.rm

If FALSE (default) missing values are silently dropped.

show.legend

Logical. Should this layer appear in the legends? Default FALSE (grid lines rarely need a legend entry).

inherit.aes

If FALSE, overrides the default aesthetics.

...

Other arguments passed to ggplot2::layer().

Value

A ggplot2::layer() object that can be added to a ggplot2::ggplot().

Line properties

By default geom_gridline() inherits each property by walking ggplot2's documented theme chain: panel.grid.major.x (or .y) → panel.grid.major → panel.grid → line so that by default lines look exactly like the grid would. If you blank panel.grid the layer picks up styling from theme(line = ...). Pass an explicit colour to override, see Examples.

Rendering order

geom_gridline() follows a specific Z-order convention to ensure maximum visibility:

  1. Major grid lines are always drawn on top of minor grid lines.

  2. Y-aesthetic grid lines are drawn on top of X-aesthetic grid lines.

This means the final drawing sequence (from bottom to top) is: Minor X, Minor Y, Major X, Major Y.

See also

ggplot2::geom_hline(), ggplot2::geom_vline() for fixed reference lines; ggplot2::theme() for controlling the underlying panel grid.

Examples

library(ggplot2)

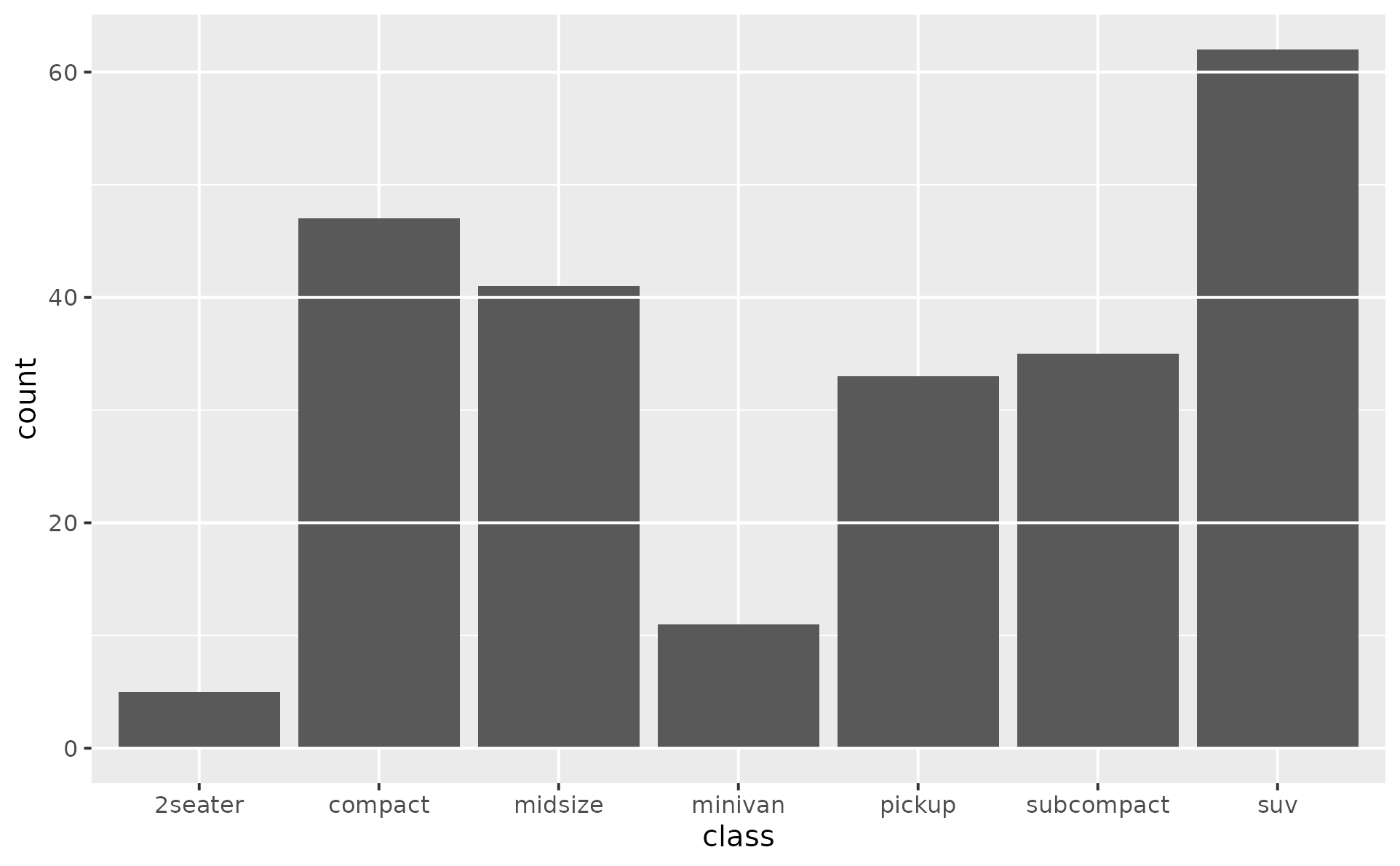

# Basic example - geom_gridline() is just another layer
# plotted in the order you add them to your ggplot
p <- ggplot(mpg, aes(class)) +
  geom_bar()
p + geom_gridline()

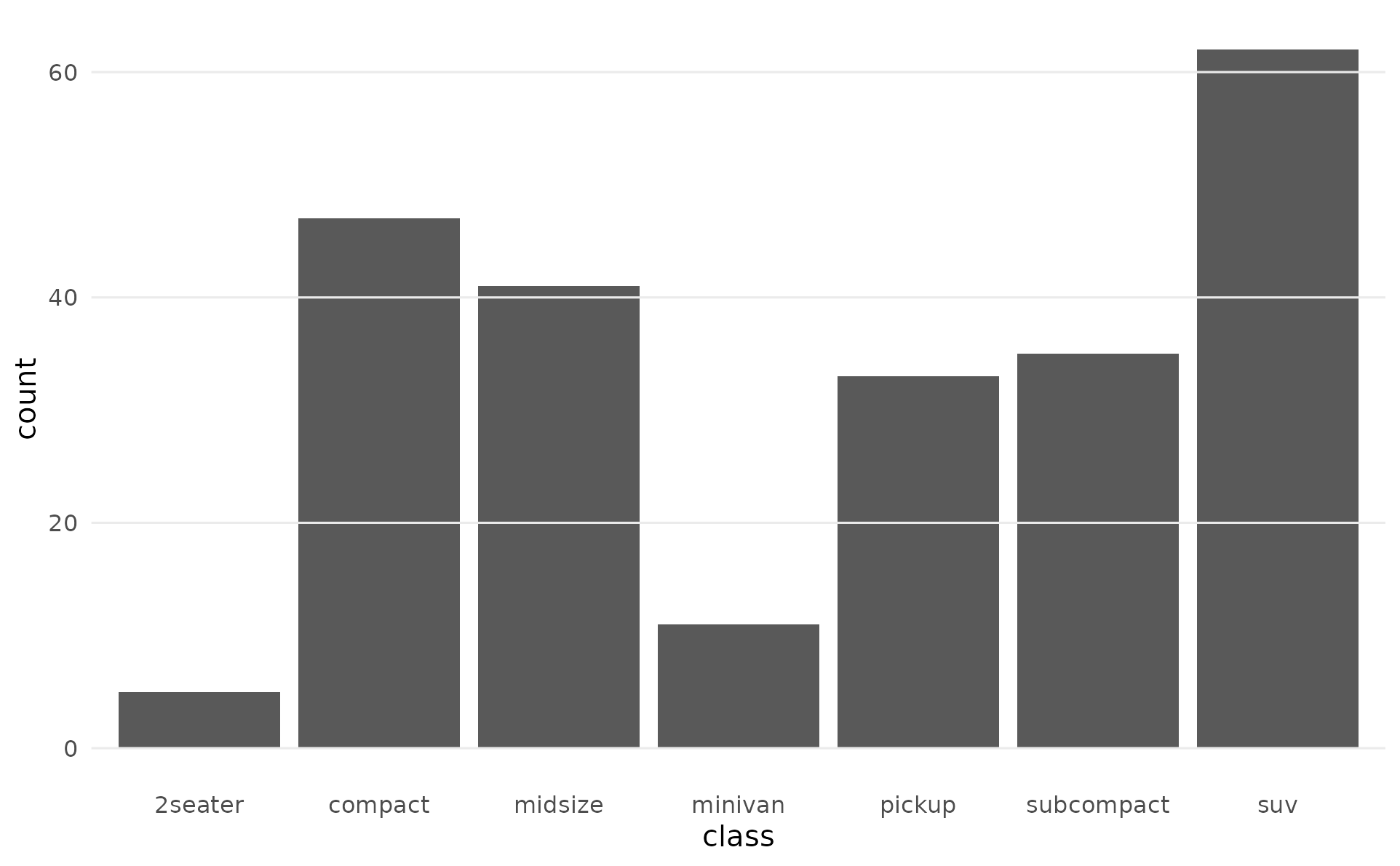

# Note: geom_gridline() does not touch the theme. To draw only the layer's
# lines (no theme grid underneath), blank the panel grid yourself.
bf <- theme_grey()$panel.background@fill
p +
  geom_gridline(linewidth = 0.4, colour = bf) +
  theme_minimal() +
  theme(panel.grid = element_blank())

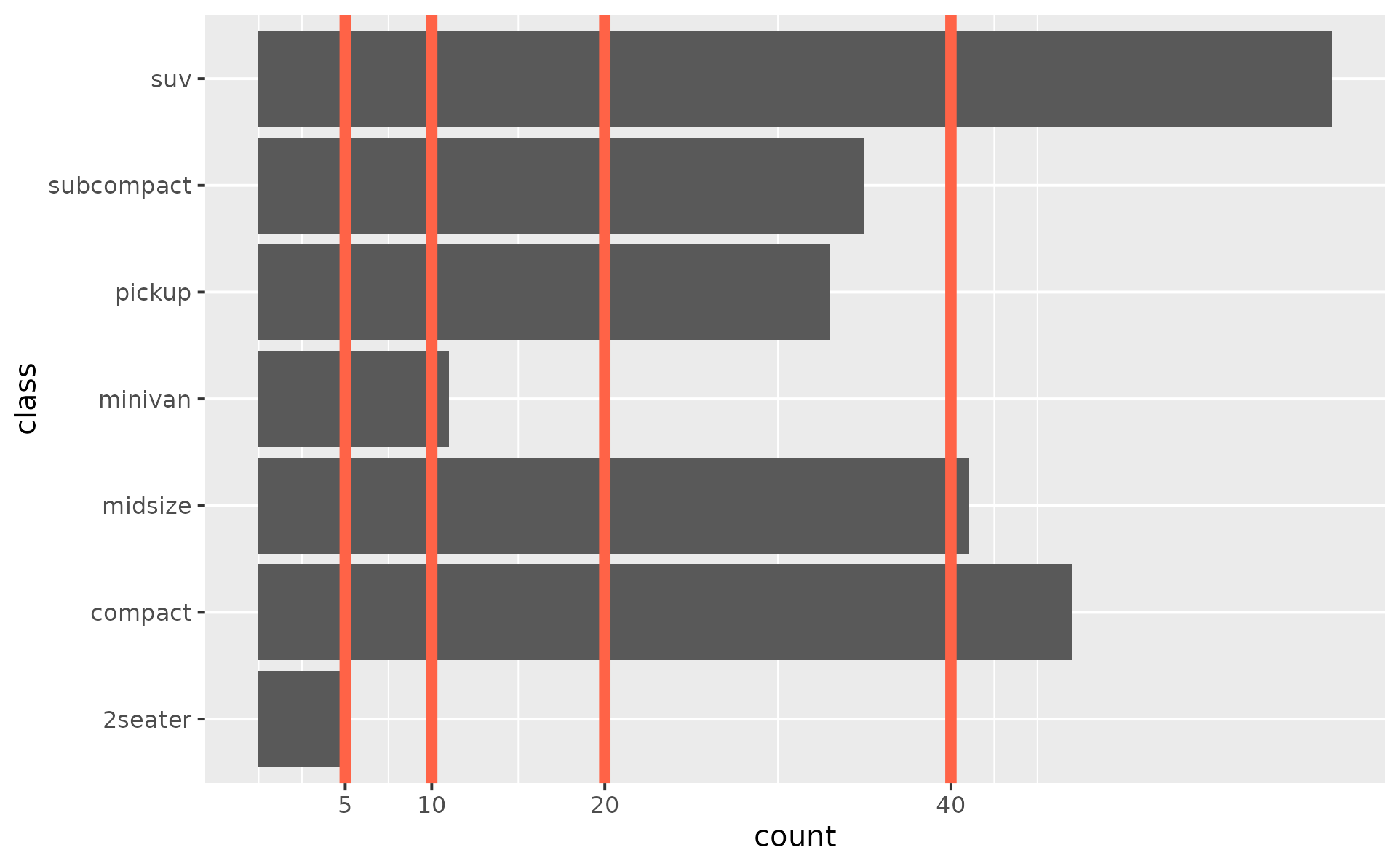

# Horizontal bars: flip axes, draw gridlines atop x-grid at custom breaks
ggplot(mpg, aes(y = class)) +
  geom_bar() +
  geom_gridline(grids = "x", colour = "tomato", linewidth = 2) +
  scale_x_continuous(breaks = c(5, 10, 20, 40))


# Line properties are inherited from theme
# their positions from the scale

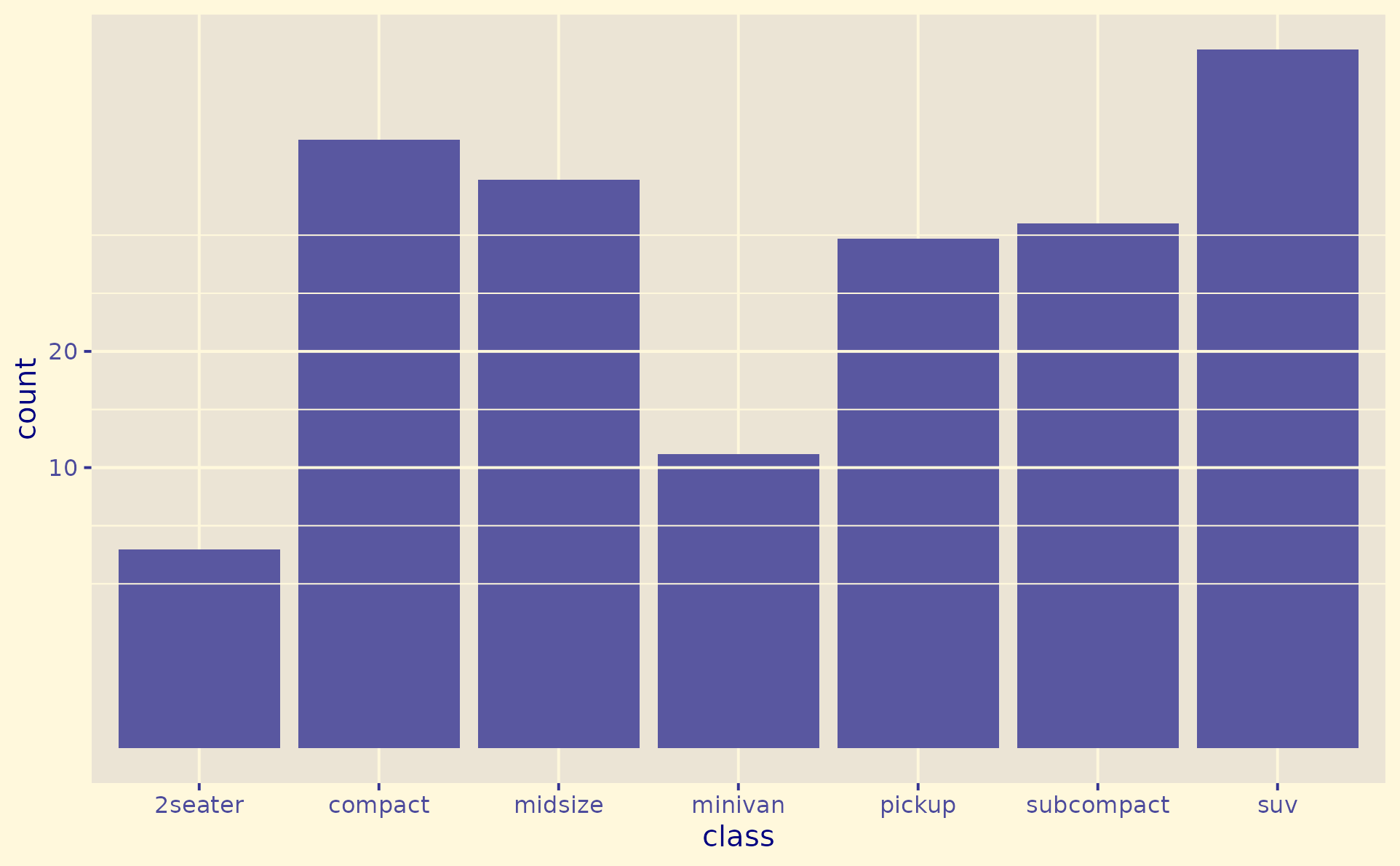

p +
  geom_gridline() +
  scale_y_continuous(breaks = c(10, 20)) +
  theme_gray(paper = "cornsilk", ink = "navy")


# When you explicitly set properties in geom_gridline
# they will overwrite theme properties

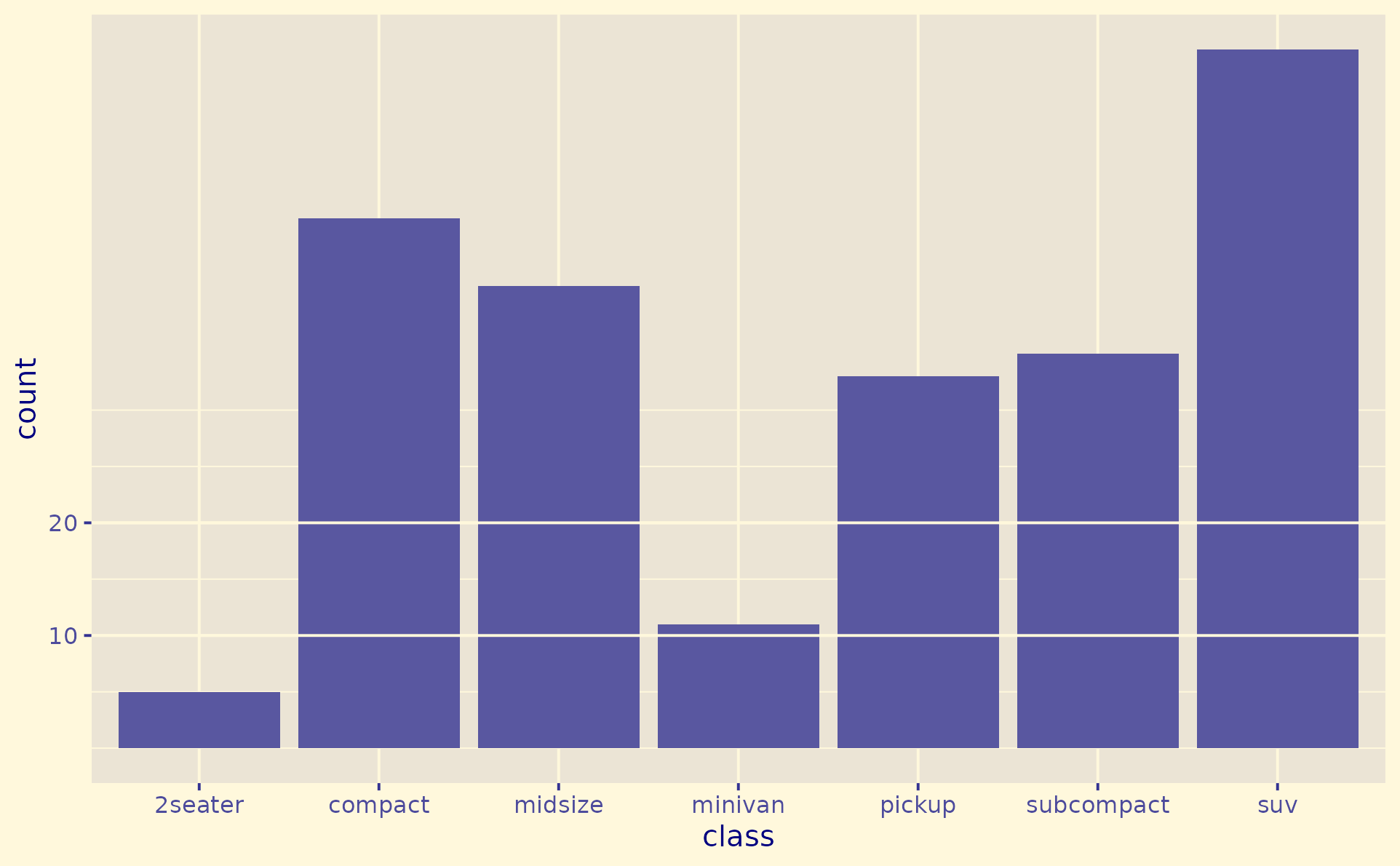

p +
  geom_gridline(lines = c("major", "minor")) +
  scale_y_sqrt(breaks = c(10, 20)) +
  theme_gray(paper = "cornsilk", ink = "navy")
