Unit Chart Histograms

A unit-cell version of ggplot2::geom_histogram(): bins a continuous variable and draws each bin as a stack of unit cells. With cell_size = 1 (the default) one cell is one observation, so the bar's height reads as a literal count.

Like ggplot2::geom_histogram() this is a thin convenience wrapper around stat = "bin". Pass bins or binwidth to control the binning; everything else (rendering, position, padding) follows geom_unit_bar() – see there for cell_size, cell_padding, cell_count_cap, radius, the rendering caveats, and the performance notes.

Usage

geom_unit_histogram(
  mapping = NULL,
  data = NULL,
  stat = "bin",
  position = "stack",
  ...,
  binwidth = NULL,
  bins = NULL,
  orientation = NA,
  radius = grid::unit(0, "pt"),
  cell_size = 1,
  cell_padding = 0.05,
  cell_count_cap = 10000,
  lineend = "butt",
  linejoin = "mitre",
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Set of aesthetic mappings created by ggplot2::aes(). For geom_unit_histogram(), x (or y for horizontal histograms) is required and supplies the continuous variable to be binned. Map fill to colour cell segments.

data

A data frame.

stat

The statistical transformation to use. Override the default to use a different stat, e.g. stat = "bin" for a tiled histogram.

position

A position adjustment to use on the data. Default "stack" stacks bars on top of each other. Use "dodge" for side-by-side bars, "fill" for proportional stacking, or position_stack(reverse = TRUE) to reverse the stacking order.

...

Other arguments passed to ggplot2::layer().

binwidth

Width of each bin in data units. When supplied, takes precedence over bins. Forwarded to ggplot2::stat_bin().

bins

Number of bins. Overridden by binwidth. Defaults to 30. Forwarded to ggplot2::stat_bin().

orientation

The orientation of the layer. Default (NA) is guessed from the aesthetic mapping. Set to "x" for vertical bars (value on y) or "y" for horizontal bars (value on x). Same as ggplot2::geom_bar().

radius

Corner radius for each cell as a grid::unit(). Default grid::unit(0, "pt") gives sharp corners. Only used with linear coordinates; non-linear coordinates (e.g. ggplot2::coord_polar()) fall back to sharp corners.

cell_size

Number of data units one cell represents. Default 1 (one cell per unit, the original "isotype" / pictogram pattern). Set to a larger value to aggregate units, e.g. cell_size = 1e4 so each cell stands for one thousand. Each cell is then cell_size tall in data space. With the package defaults (width = 1, cell_size = 1) coord_equal() already renders cells as squares; for non-default cell_size (or under position = "dodge") the coord_equal(ratio) must scale with cell_size — see the position = "dodge" subsection below for the formula. The value axis still shows the original data values; pair with scale_*_continuous(labels = label_cells(cell_size)) to show cell counts instead.

cell_padding

Inset applied per side of each cell, in CSS padding style. On linear value scales the vertical inset is a fraction of cell_size (data space); on non-linear value scales (log10, sqrt, ...) it becomes a fraction of each cell's panel extent so the gap looks visually uniform under compression – see "Log and other non-linear value scales" below. The horizontal inset is always a fraction of the bar's width (the bar axis is never the transformed one). Labels are in canonical (vertical-bar) orientation; under orientation = "y" or coord_flip() the on-screen roles swap, but element 1 always pads the value axis and element 2 always pads the bar axis.

length 1 (default 0.05) – same fraction on all four sides.
length 2, unnamed – c(vertical, horizontal); vertical is the inset between vertically-stacked cells, horizontal is the inset between each cell and its bar's left/right edge.
named (length 1 or 2) – positional independence; allowed names are "vertical" and "horizontal". A missing axis falls back to the default 0.05. So c(horizontal = 0.2, vertical = 0.1), c(vertical = 0.1, horizontal = 0.2), and c(0.1, 0.2) are all equivalent. Unknown names error rather than silently default – a typo would otherwise be hard to spot in the rendered plot.

Each element must be finite and in [0, 0.5). Set cell_padding = 0 for cells that touch (the borderless isotype style); increase it for a waffle-like grid of separated cells. The inset is applied uniformly to every cell, including the cells at the bar's outer edges – each cell represents one data unit, so cells must render at identical size regardless of whether they sit at the floor, in the middle, or at the top of a bar. As a consequence the bar's outer edges sit slightly inside the data extent: by cell_padding * cell_size vertically and cell_padding * width horizontally on linear scales, and proportionally less on non-linear value scales (where the inset is panel-proportional rather than data-proportional).

cell_count_cap

Soft cap on the total number of cells drawn per panel. A defensive safety net: this geom renders one grob per cell, so very large y values can freeze the graphics device. When the cap is exceeded, the layer falls back to solid bars (one rectangle per bar) and emits a warning. Default 1e4; pass Inf to disable. For large y you might want to set a larger cell_size, see Examples.

lineend

Line end style for the cell border when colour is set. One of "round", "butt" (default), or "square". Same as ggplot2::geom_bar().

linejoin

Line join style for the cell border. One of "round", "mitre" (default), or "bevel". Same as ggplot2::geom_bar().

na.rm

If FALSE (default), rows with missing y are dropped with a warning. Non-positive y values are kept: y = 0 produces an empty segment, and y < 0 stacks cells downward from the baseline.

show.legend

logical. Should this layer appear in the legends?

inherit.aes

If FALSE, overrides the default aesthetics.

Value

A ggplot2::layer() object that can be added to a ggplot2::ggplot().

Aesthetics

geom_unit_bar() understands the following aesthetics. Required aesthetics are displayed in bold and defaults are displayed for optional aesthetics:

•	`x`
•	`y`
•	`alpha`	→ `NA`
•	`colour`	→ via `theme()`
•	`fill`	→ via `theme()`
•	`group`	→ inferred
•	`linetype`	→ via `theme()`
•	`linewidth`	→ via `theme()`
•	`width`	→ `0.9`

stat_bin() understands the following aesthetics. Required aesthetics are displayed in bold and defaults are displayed for optional aesthetics:

•	`x` or `y`
•	`group`	→ inferred
•	`weight`	→ `1`

Learn more about setting these aesthetics in vignette("ggplot2-specs").

Examples

library(ggplot2)

# Bin a continuous variable; one cell per observation.
# Basic example
p <- ggplot(iris, aes(Sepal.Length, fill = Species))

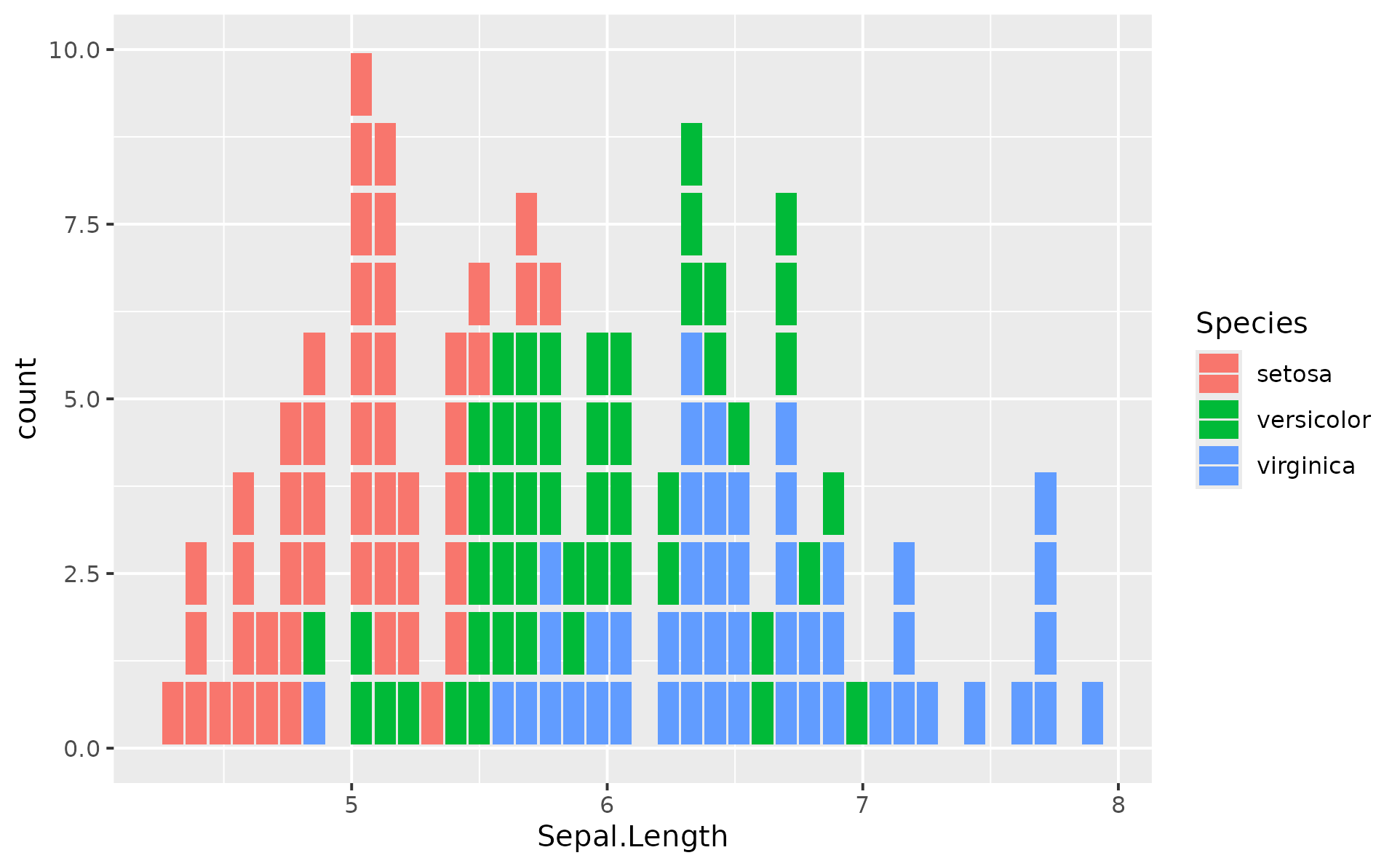

p + geom_unit_histogram(bins = 40)


# Square cells:
# With `cell_size = 1` (the default), the bin width in data units is
# the `coord_equal()` ratio that makes cells render as squares
bins <- 30
bw <- diff(range(iris$Sepal.Length)) / bins
cs <- 1 # cell_size's default for demonstration here only

# Use bw (bin width) and cs (cell_size) here in coord_equal()
p <- p + coord_equal(ratio = bw / cs)

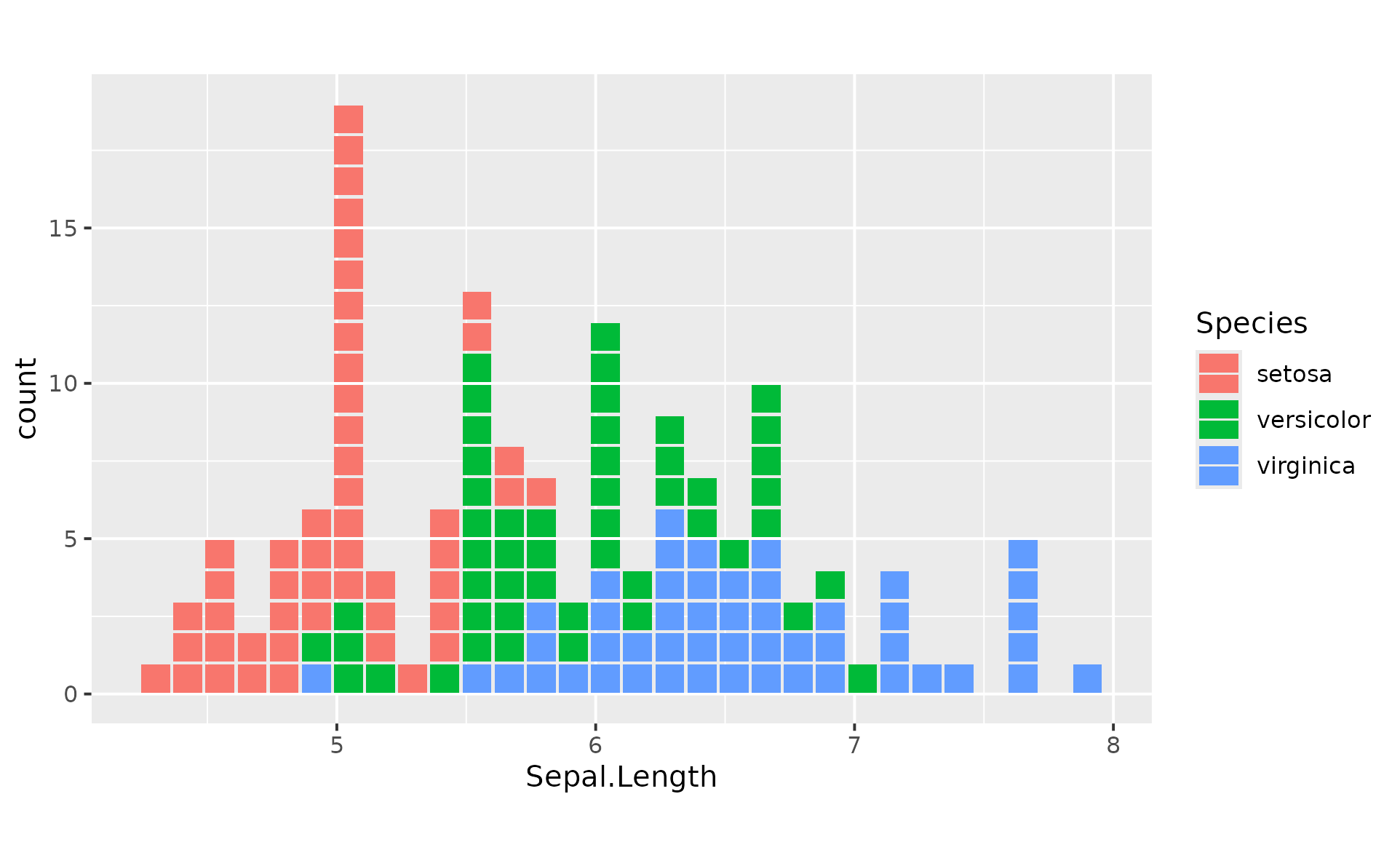

p + geom_unit_histogram()
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.


# Rounded corners are supported too

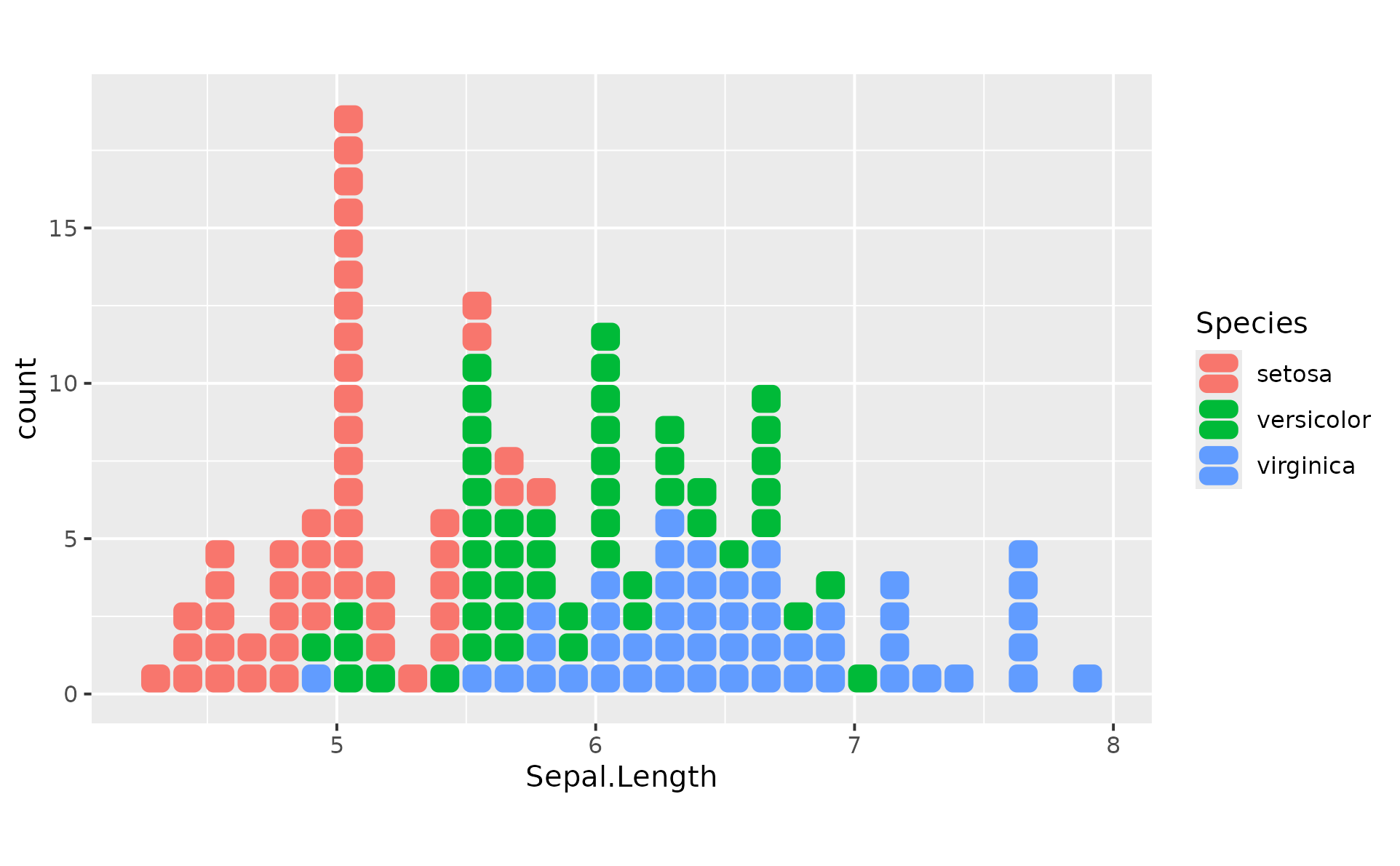

p + geom_unit_histogram(radius = unit(3, "pt"))
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.


# Horizontal orientation, and ratio: 1/2

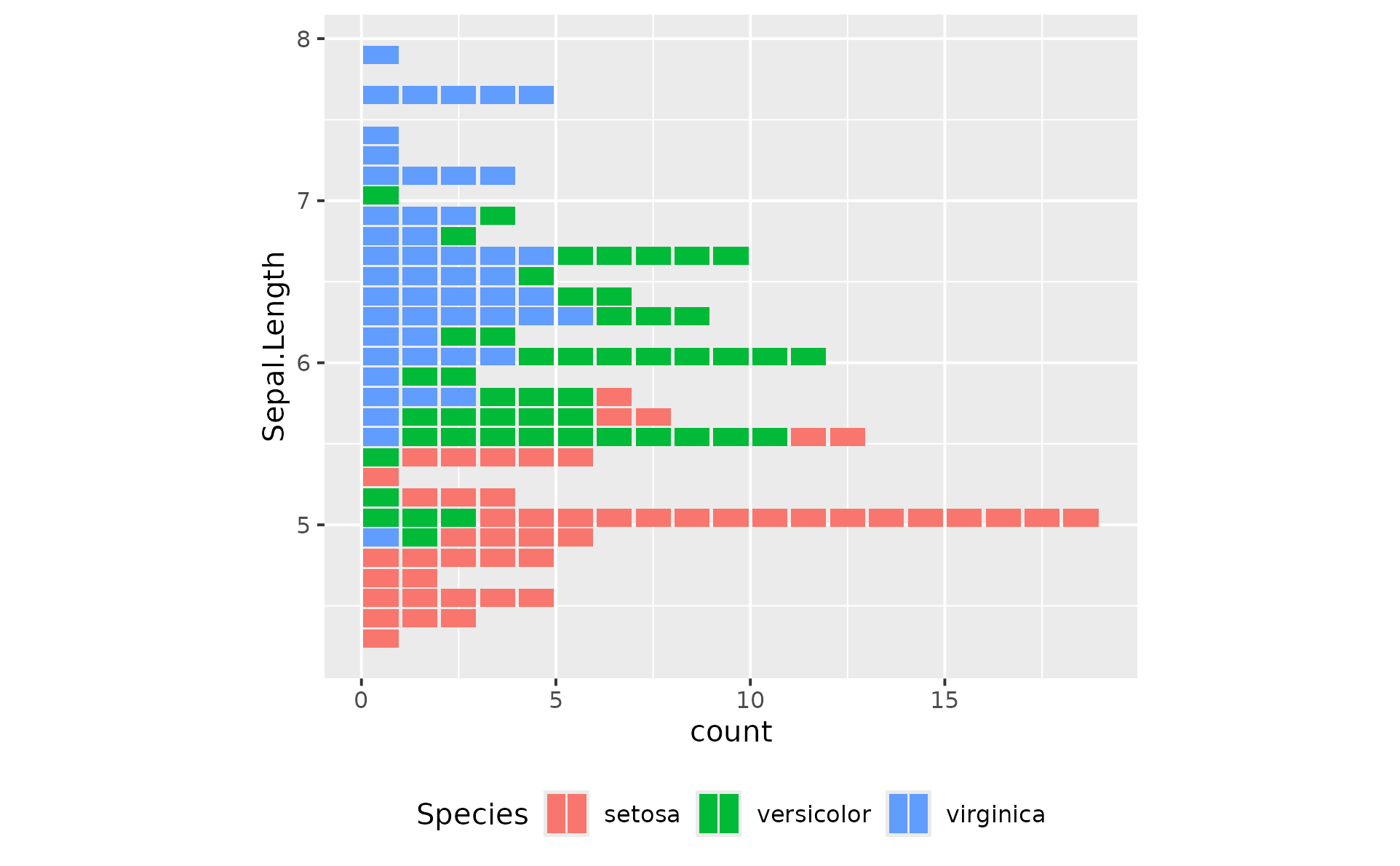

ggplot(iris, aes(y = Sepal.Length, fill = Species)) +
  geom_unit_histogram() +
  coord_equal(ratio = (1/bw) / 2 ) +
  theme(legend.position = "bottom")
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.


# When bin counts are large, set `cell_size` so each cell aggregates
# multiple observations. Pair with `label_cells()` to relabel the axis.
set.seed(1)
big <- data.frame(l = rnorm(1e5))
bw <- diff(range(big$l)) / 30
cs <- 1000

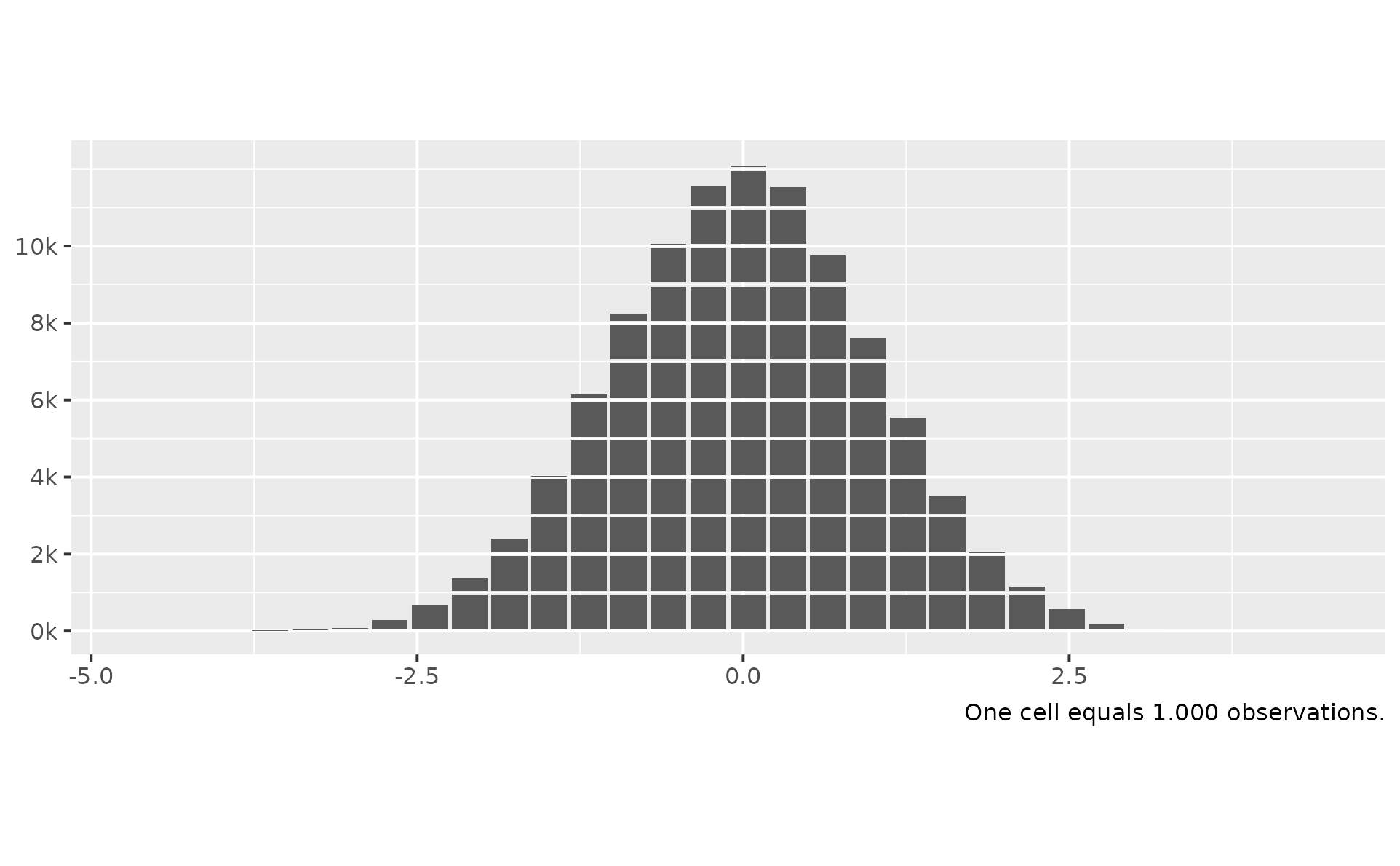

ggplot(big, aes(l)) +
  geom_unit_histogram(cell_size = cs) +
  scale_y_continuous(
    breaks = seq(0, 10, 2) * cs,
    labels = label_cells(cs, suffix = "k")
  ) +
  coord_equal(ratio = bw / cs) +
  labs(
    x = NULL,
    y = NULL,
    caption = "One cell equals 1.000 observations."
  )
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.
